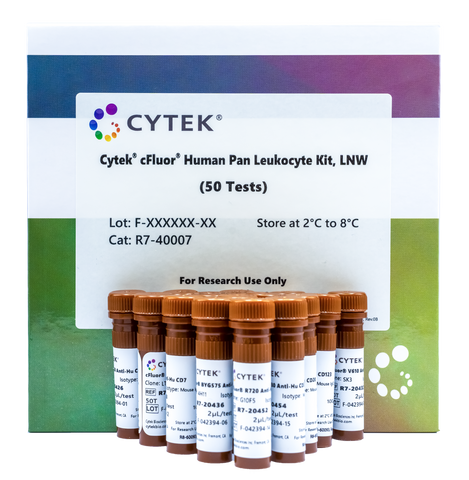

The Cytek^® cFluor^® Human Pan Leukocyte Kit, LNW helps researchers to identify and enumerate leukocyte subsets in drug discovery and development, and their other research needs. This has been designed to fully enumerate the complete set of major leukocyte subsets and to mirror and expand on those identified in a traditional complete white blood cell differential. The kit has been optimized to be run on whole blood as a lyse no wash (LNW) assay which, in tandem with a complete blood count (CBC), allows accurate dual platform absolute population counts. Furthermore, the kit has been designed and validated to allow the sequential identification of populations that provides for easy and highly reproducible gating of results. This kit can also serve as a backbone panel which can be expanded upon to further identify any populations of interest, as well as the functional or activation/exhaustion status of a particular population.

The Cytek^® cFluor^® Human Pan Leukocyte Kit, LNW allows for the identification of more than 20 leukocyte subpopulations, including neutrophils, eosinophils, basophils, lymphocytes, hematopoietic stem cells, monocyte subsets, T cell subsets, B cells, and NK cell subsets in whole blood.

• Download Flyer

PRODUCT DETAILS

Tested Dilution:  2 µL / test

Application: Flow Cytometry

Storage: 2-8°C and protected from Light. Do not freeze

Formulation: Phosphate-buffered saline, pH 7.2, containing 0.09% sodium azide and 0.2% BSA (BSA Country of Origin USA)

Data Sheets: TDS | SDS

The panel contains the following single vial reagents.

Table 1: Composition of the Cytek^® cFluor^® Human Pan Leukocyte Kit, LNW.

DATA

Figure 1. Cell gating strategy for identifying leukocyte subsets using the Cytek cFluor^® Human Pan Leukocyte Kit. Data was generated using whole blood collected in an EDTA tube from a healthy donor. Sequential gates of total cells, singlets, CD45⁺ white blood cells (WBC) are used to get total leukocyte population. CD66b⁺ WBCs are selected for identifying neutrophils (CD16⁺) and eosinophils (CD16^-). Basophils (CD123⁺HLA-DR^-) are identified in non-CD66b⁺ population. CD34⁺CD45^dim hematopoietic stem cells (HSC) are identified after excluding granulocytes (Gran) subsets in WBC. Monocytes (Mono) are selected and identified by expression of CD14 and/or CD16 in CD3^-, CD19^-, CD7^-, HLA-DR⁺ population in non-Gran and non-HSC population. Mono subsets are classified as classical Mono (CD14⁺CD16^dim), intermediate Mono (CD14⁺CD16⁺), non-classical Mono (CD14^dimCD16⁺). Total lymphocytes (Lymph) are gated after excluding Gran, HSC, and Mono subsets. CD3⁺ T cells and CD19⁺ B cells are identified in Lymph. T cells are further divided into the CD56⁺ NK-like T cells, and CD4⁺ and CD8+ T cells from CD56^- T cells. From the CD19⁺ lymphocytes, B cells are sub-populated by CD20 expression. Three subpopulations of NK cells are identified by expression of CD56^hi (Early NK), CD56⁺CD16⁺ (Mature NK), and CD56^-CD16⁺ (Terminal NK) in CD7⁺ CD3^-CD19^- Lymph.

RECOMMENDED USAGE

Whole blood collected in K2EDTA, Heparin, ACD and Cyto-Chex^® BCT blood tubes have been tested to validate the performance of this kit. Please refer to the section below to download this kit's staining protocols, data acquisition protocols, and experiment templates.

Please briefly centrifuge the reagent vial before use.

Use appropriate personal protective equipment per the product safety data sheet when using this product.

• Download the Sample Preparation Guidelines for the Cytek^® cFluor^® Human Pan Leukocyte Kit, LNW
• Download Acquisition Guidelines for the Cytek^® cFluor^® Human Pan Leukocyte Kit, LNW
• Download the Experiment Template for the Cytek^® cFluor^® Human Pan Leukocyte Kit, LNW
• Download the Assay Tags for the Cytek^® cFluor^® Human Pan Leukocyte Kit, LNW

REFERENCES

Clevers H, et al. Ann Rev Immunol. 1988 6, 629 (1988)

Evans RL, et al. Immunol. 78, 544 (1981)

Rabinowich H. J Immunol. 152(2):517-526 (1994)

Cole DK, et al. Cell Mol Immunol. 1, 81 (2004)

Ferrero E, et al. J Immunol. 145, 331 (1990)

Wirthmueller U, et al. J Exp Med. 175, (1992)

Passlick B, et al. 1989. Blood. 74(7):2527-34.

Macardle PJ, et al. Cell Immunol. 168, 59 (1996)

Pieper K, et al. J Allergy Clin Immunol. 131, 959-971 (2013)

Berenson RJ, et al. Blood. 77(8):1717-22. (1991)

Healy L, et al. PNAS. 92(26):12240-12244. (1995)

Loken MR, et al. Cytometry. 11, 453 (1990)

Poli A, et al. Immunology. 126, 458 (2009)

Yoon J, et al. J Immunol. 179 (12) 8454-8462 (2007)

Yamada T, et al. Allergy Clin Immunol. 101, 677 (1998)

Uguccioni M, et al. J Clin Invest. 1;100(5):1137-43 (1997)

Walseng E, et al. J Biol Chem. 283,14717 (2008)

For Research Use Only. Not intended for use in diagnostic procedures.

cFluor^® V547, cFluor^® B515, cFluor^® R685 and cFluor^® R720 are equivalent to CF^®405L, CF^®488A, CF^®660C and CF^®700 respectively, manufactured and provided by Biotium, Inc. under an Agreement between Biotium and Cytek (LICENSEE). The manufacture, use, sale, offer for sale, or import of the product is covered by one or more of the patents or pending applications owned or licensed by Biotium. The purchase of this product includes a limited, non-transferable immunity from suit under the foregoing patent claims for using only this amount of product for the purchaser’s own internal research. No right under any other patent claim, no right to perform any patented method, and no right to perform commercial services of any kind, including without limitation reporting the results of purchaser’s activities for a fee or other commercial consideration, is conveyed expressly, by implication, or by estoppel.

cFluor^® BYG610, cFluor^® BYG667, cFluor^® BYG710, cFluor^® BYG750, and cFluor^® BYG781 are tandem dyes made with R-PE. cFluor^® R780 is a tandem dye made with APC. Caution: Tandem dyes may show changes in their emission spectra with prolonged exposure to light or fixatives.
